Inputs:
- 120/240 V AC
- ORP or pH sensor connected directly or through a remote pre-amp
- Sensor input is isolated
- Sensing accuracy: +/- 0.1% per year
- Range: -1000 to 1000 mV or 0.0 to 14.0 pH units
- 4-20 mA analog input (used for flow readings)
Outputs:
- Fully rangeable, 4-20 mA recorder output with +/- 0.02 mA accuracy
- Used with devices up to 1000 ohms
- 6 relay outputs
- 4-20 mA feeder output
- 2 Control modes: TBP / Monitor
- General alarm relay
- 120/240 VAC, 5 amp relay for automatic sensor cleaning

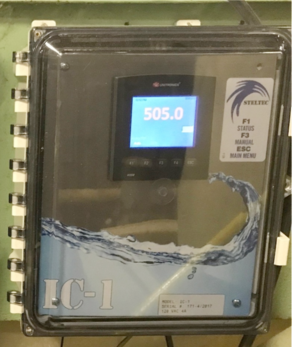

IC-1 is a single channel ORP/pH controller utilizing Time Base Proportional (TBP) logic for basic chemical control. This controller is suitable for industrial applications requiring single basin monitoring and control.
Water & Waste Water
Control Systems
STELTEC Inc © copyright | Privacy Policy
Features:
- 3.5" color touch screen
- Live trending
- Auto-sensitivity tuning
- SD data logging
- Battery backup
- Start-up recall
- Alarm overrides
- NEMA 4X Enclosure
- Slave support
Communications:
- Ethernet capable
- Web-based enabled
- Modbus
